Vortex generator

After vortex generator installation, the flow distribution around blades improves a lot  compared with that before installation.From the theory analysis,it can improve much stability for the old type stalled fan. For the mainstream of the variable speed variable pitch fan.For most popular type fan which is with  propeller shifting and speed shifting performance,it can efficiently improve wind speed,run stably.

For Automobile industry, flow control by using vortex generator, adjusting control position and control parameters, can effectively improve the wake flow pressure, reduce the pressure resistance,so as to effectively reduce the automobile aerodynamic resistance by using the minimum energy input,to improve driving power for the automobiles.

  For windmill fan,the vortex generator is installed on the wing surface to generate small vortexes, so that the airflow separation can be prevented, and the energy lost on the wing is locked on the wing surface, thereby increasing the power generation of the fan and producing economic benefits. The technology has been widely used by foreign manufacturers, such as GE.

For plane, the vortex generators are installed on the it, can effectively prevent the various separations of  airflow within too short time,so as to prevent the stall of the plane, stall angle increases, increase the maximum lift coefficient, increase control performance, Gentle joy stick vibration.

 At present, we use theoretical analysis and numerical simulation and other research methods.We summed up a set of vortex generator design, experiment, production, installation of mature technology system through the wind tunnel test results and rich experience and actual installation. In the design aspect,our  company experts use the most advanced 2 dimensional 3 dimensional numerical simulation method on the research server to comprehensively verify the layout scheme of the vortex generator. During the test, our company expert guiding team will guide how to install vortex generator system for windmill system.And we will check out the final performance with owner.

We adopt numerical simulation method,use a large and accurate vortex simulation turbulence model, and the accuracy is much higher than that of the traditional industrial turbulence model. In order to obtain accurate aerodynamic information of airfoils used in different blades. We will design the vortex generator through the "wool matrix method - fan blade surface flow field observation experiment" observation results.

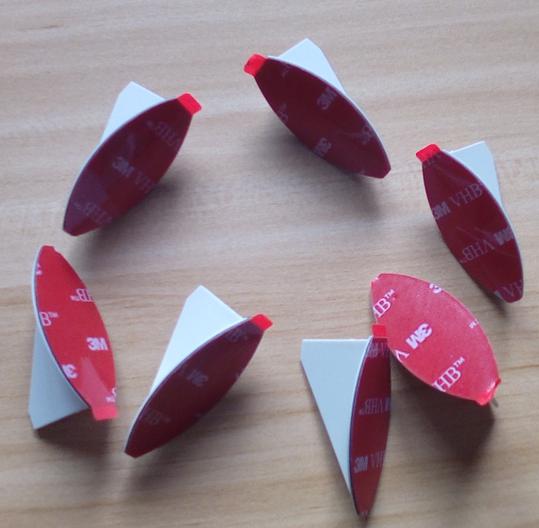

Single blade vortex  generator      product model: VG42080A

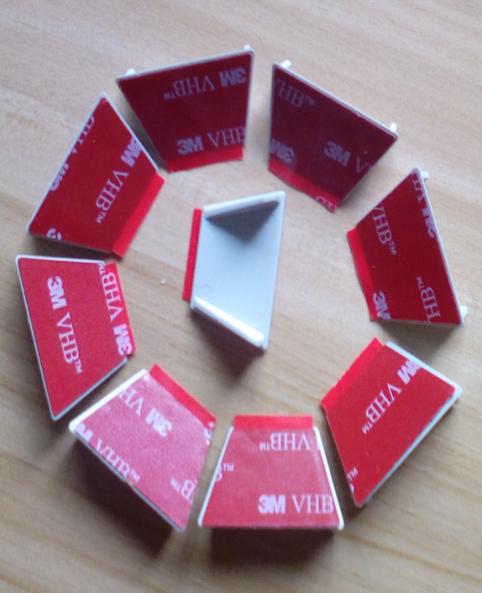

Double blades vortex  generator     product model: VG42080A

Material: Modified PP-11685UV

Main features: excellent weather resistance, good comprehensive mechanical performance, high mobility, color can be customized.

Product has high appearance requirements: products without strain, no stress mark, rough edges less than 0.1mm,smooth adhesive.

Product Description: vortex generator is designed according to the principle of aerodynamics,energy from wing boundary bottom layer low energy region and boundary layer low energy region  can exchange,Control boundary layer separation, especially the turbulent boundary layer separation flow, to improve the blade flow efficiency, average each fan can enhance the power generation capacity of 1.5%-4.5% .Vortex generator, has gradually become the wind turbine standards to owners. Our company is the first enterprise to produce vortex generator in our country. The product not only has the characteristics of anti-UV ,anti-aging, but also has good flexibility, avoiding the shape change during transportation. The product has been tested for more 20 times, with stable performance, matched installation tools to make convenient installation, easy operation and saving much installation and maintenance costs for customers. At present, the product has been used in China for more than four years, feedback from customer is all good, applied to Xinjiang, Gansu, Inner Mongolia, Yunnan, Guizhou and other harsh area and environment.

Adhesive(gum) for the vortex generator

Item number: 3M5925,

Product type: Foam

Base material: acrylic acid

Thickness: 0.64mm

Color: gray

Instant temperature resistance: 149℃

Working temperature resistance: 90℃

Properties: Good shear resistance, good Plasticizer resistance, High density acrylic foam matrix, acrylic adhesive, excellent bonding strength, good sealing performance, can replace screw, welding and other traditional mechanical connection, anti UV, anti solvent, can be used in outdoor.

Applications: metals, plastics, glass, ceramics and many other structure adhesiveness. Such as metal reinforcement, electronic products, plastic parts fixed, laminated glass and so on. Applied to the industry: electronics, electrical appliances, lighting, mobile phone, Photoelectricity, communications, construction, paper making, woodworking, aerospace, automotive, textile, metallurgy, machinery manufacturing, medical, hardware, plastic, printing, toys, crafts ,etc.

Requirements: gum gum paste vortex generator vortex generator complete paste on the back, no dislocation, paste without bubble.

Adhesive(gum) for vortex generator paste requirement:

Adhesive(gum) pastes on the back of vortex generator , no dislocation, paste without bubble.

Adhesive(gum) for vortex generator paste environment.

Assemble at constant temperature and dust-free workshop, , avoid dust during the installation process, temperature and humidity affect the adhesiveness,also,work staff should be equipped with special protection and installation tools, to make sure the product quality.

Single bladeDouble blades vortex  generator VG installation tool
       Product Description: VG installation tool is a vortex generator supporting installation tools, it is made of foam sponge material, light weight, easy to install.

Appearance requirements: Tools can not be deformed, sponge surface smooth, no damage.

Product application and test report

The product range has passed the dynamic shear force test, high and low temperature cycle tests, UV radiation test, salt fog test and other testing items, obtained relevant certifications,and has been used for more than two years, and applied to hundreds of wind power systems.
